| Model | Domestic-ready | Total Ports | 100G/40GOptical Ports | 1G/10G/25GOptical Ports | GEElectrical Ports | Maximum Forwarding Bandwidth |
|---|---|---|---|---|---|---|
| GS7000-8X8T | 16 | — | 8 | 8 | 88Gbps | |
| UT200-24X | ✓ | 24 | — | 24 | — | 240Gbps |
| UT200-24X2C | ✓ | 26 | 2 | 24 | — | 440Gbps |
| UT200-16T28X | ✓ | 44 | — | 28 | 16 | 296Gbps |
| UT200-48X | 48 | — | 48 | — | 480Gbps | |
| UT200-48X4C | ✓ | 52 | 4 | 48 | — | 880Gbps |
| UT200-48X6C | 54 | 6 | 48 | — | 1080Gbps | |
| UT200-48Y8C | ✓ | 56 | 8 | 48 | — | 2Tbps |
| UT200-32C | ✓ | 32 | 32 | — | — | 3.2Tbps |
GS7000-8X8T
8x 1G RJ45 electrical ports + 8x 10G SFP+ optical ports
UT200-24X
24x 10G SFP+ optical ports

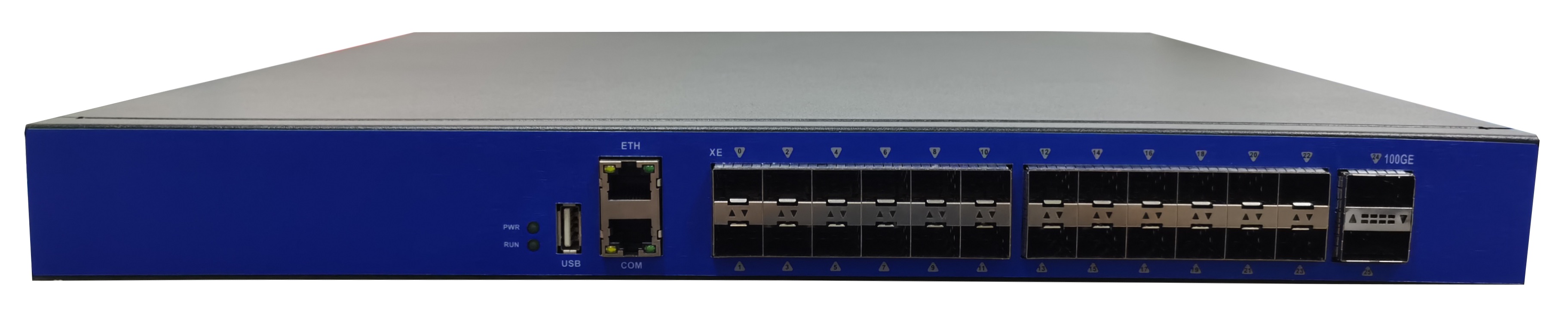

UT200-24X2C
24x 10G SFP+ optical ports + 2x 100G QSFP28 optical ports

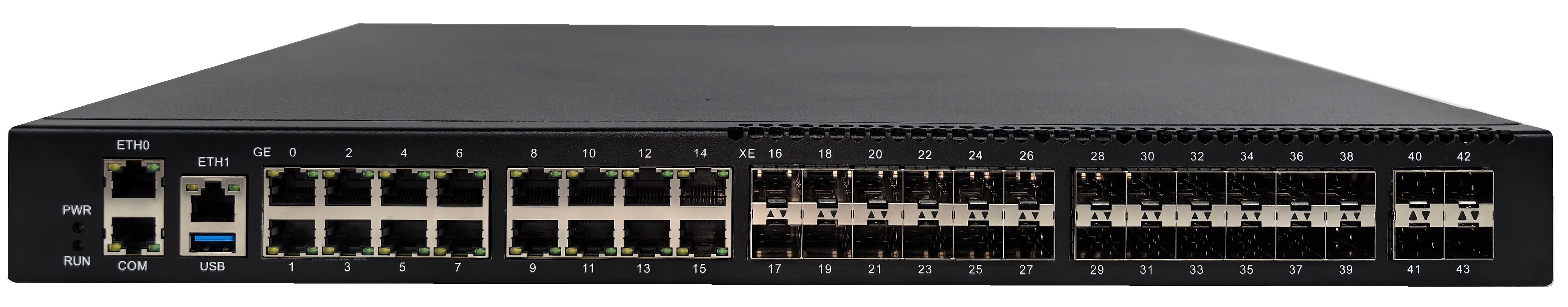

UT200-16T28X
16x 1G RJ45 electrical ports + 28x 10G SFP+ optical ports

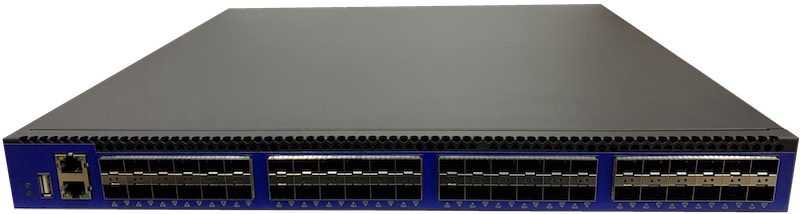

UT200-48X
48x 10G SFP+ optical ports

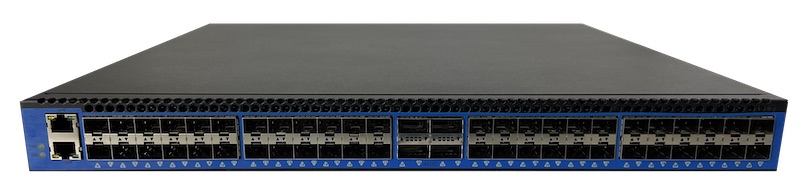

UT200-48X4C
48x 10G SFP+ optical ports + 4x 100G QSFP28 optical ports

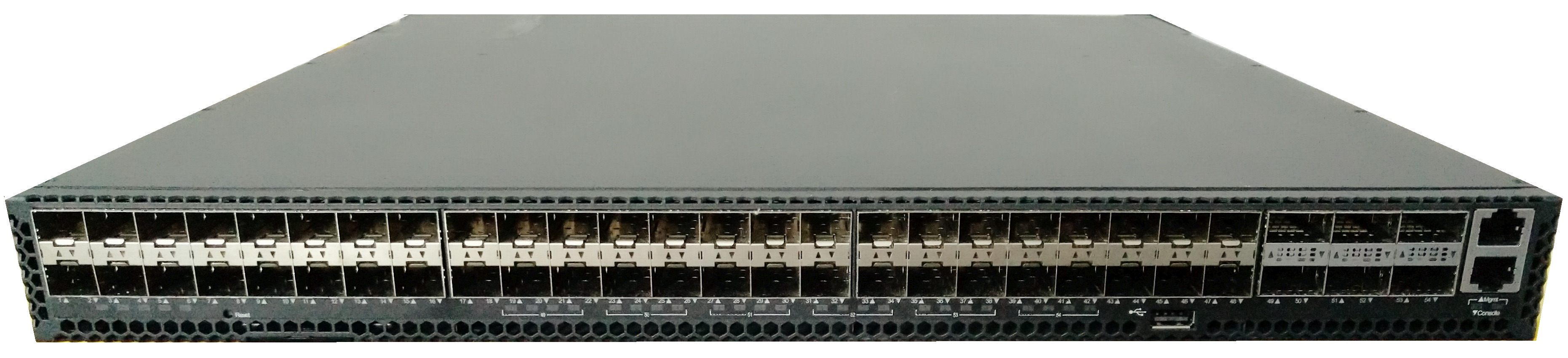

UT200-48X6C
48x 10G SFP+ optical ports + 6x 100G QSFP28 optical ports
UT200-48Y8C
48x 10G SFP+ optical ports + 8x 100G QSFP28 optical ports
UT200-32C
32x 100G QSFP28 optical ports
Detailed Technical Specifications
Packet Identification
Supports L2 VLAN, L4 MPLS labels, VxLAN, GRE/GTP/L2TP/PPTP/PPPOE tunneled packets, and IPv4/IPv6/ICMP/SCTP parsing.
Multi-tuple Rules
Source IP, destination IP, protocol type, source port, destination port, VLAN ID, ingress port ID, packet length, and custom fields
Signature Rules
Supports signature matching at fixed payload offsets and binding between multi-tuple and signature rules.
Mobile Core Network
Supports distribution by inner/outer GTP-U IP, configurable inner/outer modes, and GTP v1/v2 recognition.
Load Balancing
Supports SIP, SIP+SP, DIP, DIP+DP, SDIP, SDIP+SDP, VLAN, round-robin, and broadcast strategies.
Header Stripping
Supports stripping and decapsulation of VLAN/MPLS/IP-in-IP/GRE/GTP/VXLAN outer headers.
Packet Slicing
Configurable retained length, per-port configuration, and rule-based slicing enablement.
Output Metadata
Carries MAC tag, ingress port, matched rule ID, and precise timestamp.
Same-source Same-destination
Device-wide source-consistent flow forwarding; the same flow from different ingress ports can also be output with source-consistent flow forwarding
Configuration Management
Supports CLI, SNMP, and Web management; supports remote upgrade without overwriting system configuration.
